Top Powder Sampler with Containment

Top Powder Sampler with Containment

Category
Share on facebook
Share on twitter
Share on linkedin

Product Description

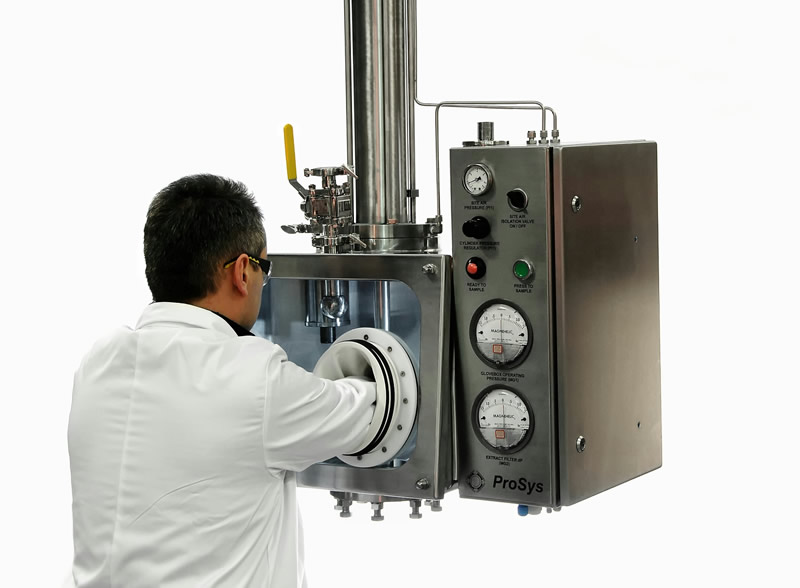

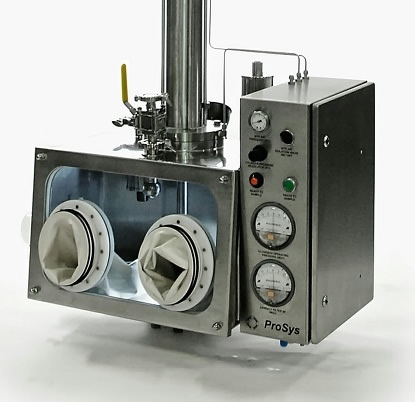

  • Fitted with a Glovebox for contained sampling
  • Client can specify OEL requirements
  • Can be fitted with an RTP for sample transfer to the lab
  • Sampling carried out under Atmospheric conditions
  • Sample is taken away from the side wall of the drier and is therefore more representative

Operation

  • The sampler is isolated from the vessel by a ball valve

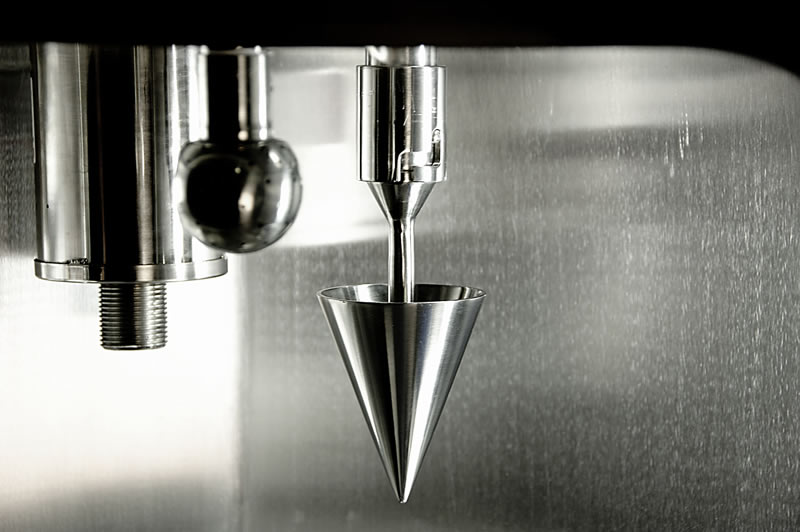

  • A pneumatic cylinder inserts a sampling device through the open ball valve from the top of the filter dryer
  • The sample is retracted back into the cabinet, and transferred into a bottle inside the enclosure after closing the isolation ball valve

Top Powder Sampler with Pressure Rated Housing

  • Fitted with a pressure rated housing for sampling under Vacuum or Nitrogen pressure
  • No time lost in breaking pressure condition of Dryer



Options/accessories

  • Vacuum cabinet around the sample cup
  • Glovebox for high containment
  • Cup or capsule (multi-level) sampling

As an industry leader, JWII can deliver a great deal of relevant knowledge to customers seeking a wide variety of products and applications. We have the tools and people necessary to provide impactful solutions and, with a long track record of success, we pride ourselves on the ability to provide continuous support to a diverse customer base, spanning several continents and markets.

  • Installation
  • Maintenance
  • Repair and Modifications
  • Modification of existing installations
  • Emergency Repair
  • Commissioning
  • Site Services
